Specification:

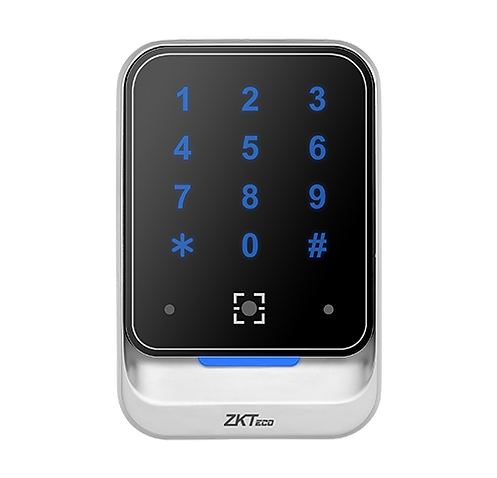

QR600 Series of QR code and RFID card readers is made up of metal, IP65 rated (waterproof and dustproof). The QR reader supports Dynamic QR code recognition with the ZKBio CVSecurity Mobile Application

Features

*Rugged waterproof metal case

*Keypad · IP65 waterproof

*Dynamic QR codes on the ZKBio CVSecurity Mobile Application

*QR code, PDF417, Data Matrix, MicroPDF417, Aztec

*Supports Chile & Argentina National ID PDF417 code

*Communication: Wiegand & RS485 (OSDP only for RFID)

*Supports 125kHz ID crads or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag

Parameters

• Card Reading DistanceQR Code ≥ 5cm; RFID Card ≥ 4cm

• CommunicationWiegand & RS485

• Dimensions(L*W*D)120*80*16 (mm)

• Ingress Protection RatingIP65

• Operating Humidity20% to 80%
  (assuming the working environment temp. is 25°C)

• Operating Temperature-20°C to 60°C

• PowerDC 12V (±5%)

• QR SensorQR, Data Matrix, PDF417, GS1 Databar, Code 128 / EAN128,
  UPC / EAN, Codabar, Code 39 / Code 93 etc

• RFID125kHz ID crads / 13.56MHz IC Cards

• Storage Temperature-20°C to 80°C
